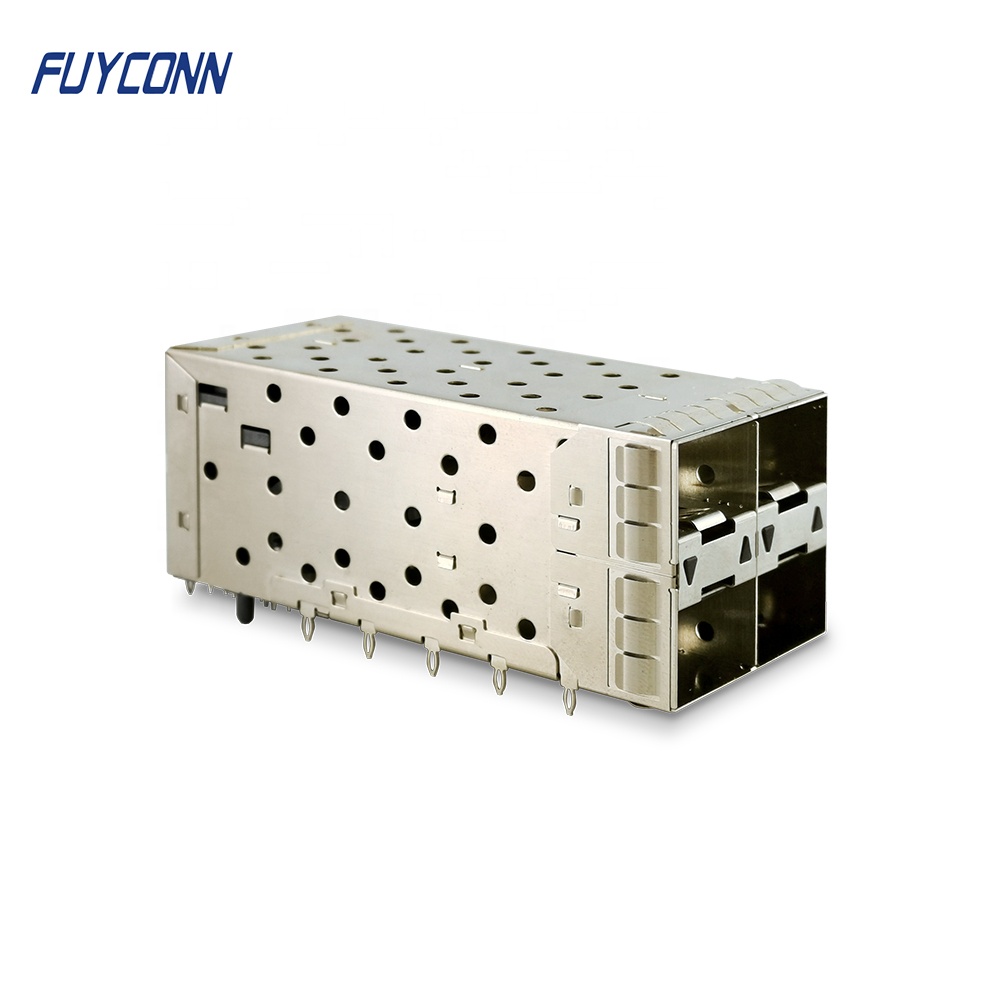

SFP+ 2x2 Press-Fit Connector 80pin Dual Port with Lightpipe

Name: SFP 2x2 PressFit Connector 80pin Dual Port with Lightpipe
Brand: FUYCONN
Price: 6 USD

China SFP+ 2x2 Press-Fit Connector 80pin Dual Port with Lightpipe factory

Model Number : FUYSFP2027-28

Place of Origin : Guangdong, China

Brand Name : FUYCONN

MOQ : 100

Price : $6

Connector Type : SFP

Number of Terminal : 80 pin

Number Of Ports : 2*2 dual ports

Gender : Female

Insulator Material : PBT

Contact pin Material : Phosphor Bronze

Lightpipe : with light pipe

Current Rating : 1AMP

Withstanding Voltage : 500v for one minute

Insulator Resistance : 500MΩ min (at DC500V)

Contact Resistance : 35MΩ Max

Operation Temperature : -55°C to +105°C

Data Speed Rate : up to 10Gb/s

Contact Type : Small Form-factor Pluggable

Finish : Nickel Silver

Contact Now

Product Description

SFP+ 2x2 Press-Fit Connector 80pin Small Form-factor Pluggable Plus Stacked 2-by-1 Multi-Port SFP+ Connector w/ Lightpipe Ports

SFP (Small Form-factor Pluggable) module connector with various data speed rate is one of the major optical transceivers used for data communication. SFP connector was first introduced in early 2000 and designed to replace the previous gigabit interface converter (GBIC) connector in fiber optic and Ethernet high-speed networking systems. Based on the IEEE 802.3, SFF-8472 protocol specification, SFP module connectors has the ability to handle up to 4.25Gb/s with greater port density than the GBIC, which is why SFP is also known as mini GBIC. This allowed it to quickly become the connector of choice for system administrators who liked the idea of being able to significantly increase their output per rack. The SFP connectors can support Gigabit Ethernet, Fibre Channel, Synchronous Optical Network (SONET) and other communication standards.

To cater the need for faster transmission speed, the SFP+ (or SFP10) was introduced in 2006, as an extension of the SFP connector. Based on IEEE802.3ae, SFF-8431, and SFF-8432 protocol specifications, the SFP+ is designed to support data rates up to 10Gb/s. Compared with its predecessor SFP, the newly SFP+ can support Fibre Channel, 10GbE, SONET, OTN, and other communication standards. The SFP+ is similar in size to the SFP connector. And the primary difference between an SFP and a SFP+ is their transmission speed. It is noticeable that SFP/SFP+ are both copper and optical.

Product Feature
1. Product Name:	SFP Connector
2. Product Line:	Small Form-factor Pluggable
3. Connector Gender:	Female Centronic Connector
4. Contact Type	Small Form-factor Pluggable
5. Number of Position:	80pin
6. Ports:	2*2 4 Ports
7. Contact Material:	Phosphore Bronze
8. Finish:	Nickel Silver
9. Insulation Material:	PBT
10. Lightpipe	with

Electrical Specifications
1. Current Rating:	1AMP
2. Withstanding Voltage:	500v for one minute
3. Insulator Resistance:	500MΩ min (at DC500V)
4. Contact Resistance:	35MΩ Max
5. Operation Temperature:	-55°C to +105°C

SFP+ 2x2 Press-Fit Connector 80pin Dual Port with Lightpipe

Application

1, Networking equipment

2, Router/Switch

3, Data/Communications

4, High-end servers

5, Networking

6, Telecommunications

7,Switches

8,Telecommunications hardware

9,Fibre Channel and Gigabit Ethernet

10, Servers

Strong Package

1, Vacuum Tray

2, PE Bag

3, Take strong bags/boxes/cartons

4, PE Bag + Strips
